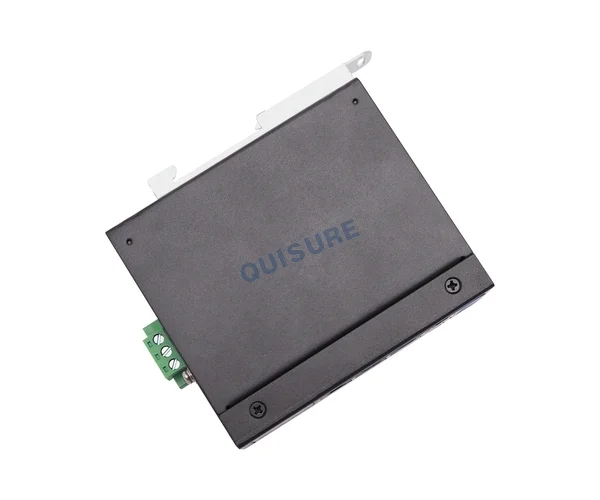

UT-6408CA, Non managed Ethernet switch, UTEK

RJ-45 port: 5/8* 10/100Base-T, 10/100Mbps, auto-MDI/MDI-X

Standard: IEEE802.3 10base-T, IEEE802.3u 100base-TX,

Power input: 12/24/48VDC(10.8-52.8VDC), reverse polarity protection

IP protection level: IP40

Installation: DIN-Rail

Operating temp: -40~75°C

Features

• Supports full-duplex or half-duplex mode with auto-negotiation capability.

• 10/100Mbps auto adaptation.

• Port supports automatic MDI/MDI-X crossover detection without manual configuration.

• Plug and play for convenient use.

• Wide operating temperature: -40℃ ~ 75℃.

• Wide voltage input: 12/24/48VDC(9~60VDC), with reverse polarity protection.

Standard
IEEE Standards	IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX
Interface
RJ45 Ports	8 × 10/100Base-TX ports, auto-detection, full/half-duplex MDI/MDI-X
LED Indicators	PWR (power), Network status
Power Requirements
Input Voltage	12/24/48VDC(9~60VDC)
Power	100mA@24Vmax
Terminal	3-pin detachable terminal block
Overload Protection	Provided
Reverse Protection	Provided
Switching Performance
Forwarding Rate	148810pps
Transmission Mode	Store-and-Forward
MAC Address Table	1K
Buffer Memory	448Kb
Backplane Bandwidth	1.6G
Mechanical Characteristics
Enclosure	IP40 protection grade
Mounting	DIN-rail installation
Weight	0.62kg
Dimensions (W×H×D)	100mm×85mm×40.2mm
Package Dimensions
Package Size	180mm×140mm×55mm
Operating Environment
Operating Temperature	-40℃ ~ 75℃
Storage Temperature	-40℃ ~ 85℃
Relative Humidity	0~95% (non-condensing)
Industry Standards
EMI	FCC Part 15 Subpart B class A, EN55022 class A
EMS	IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5(Surge), IEC(EN)61000-4-6(CS), IEC(EN)61000-4-8, IEC60068-2-27(Shock), IEC60068-2-32(Freefall), IEC60068-2-6(Vibration)
