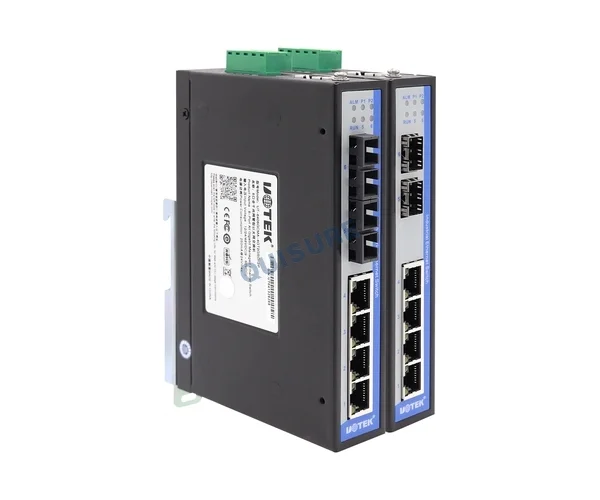

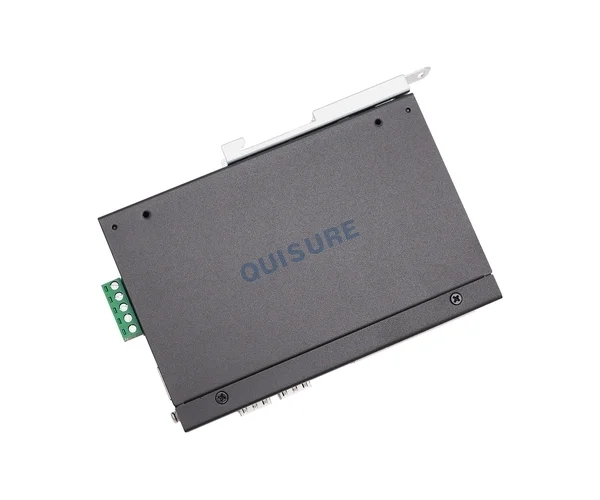

UT-6406GCMA-4GT2GP, Network managed Ethernet switch, UTEK
6-Port gigabit managed ethernet ewitch
Supports IGMP Snooping to filter multicast packets
Supports IEEE 802.1Q VLAN, QoS
Supports STP/RSTP/MSTP, ERPS, UT-Ring
Supports SNMPv1/v2/v3
Supports trap, RMON, IEEE802.1x
Operating temp: -40℃～75℃
Features
- Supports Ethernet and fiber ports (ST/FC/SC/SFP interfaces) in various combinations
- Supports Web configuration for 100Base-FX, 1000Base-X mode types
- Supports IGMP Snooping for multicast filtering
- Supports IEEE 802.1Q VLAN for flexible network planning
- Supports QoS for real-time traffic classification and prioritization
- Supports STP/RSTP/MSTP/ERPS network redundancy to prevent network storms
- Supports UT-Ring private ring network function
- Supports SNMPv1/v2c/v3 for multi-level network management
- Supports RMON for flexible network monitoring
- Supports IEEE802.1X authentication
- Supports link aggregation for optimized bandwidth utilization
- Supports port mirroring and ACL to enhance flexibility and security
- Supports port mirroring for online debugging
- Supports DHCP Server for dynamic IP allocation
- Supports broadcast, multicast, and unknown unicast storm suppression to ensure network stability
- Supports LLDP, Link flap, UDLD, DDM and loop detection for link diagnostics
- Supports wide temperature operation: -40~75℃
Specifications
|
Protocol Standards |
|
|
Standards |
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x |
|
Protocols |
ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, ERPS, UDLD, NTP, RMON, Syslog |
|
Flow Control |
IEEE802.3x flow control, back pressure flow control |
|
Interfaces |
|
|
Fiber Ports |
100Base-FX/1000Base-X (SC/FC/ST/SFP slots) |
|
RJ45 Ports |
10/100/1000Base-T, MDI/MDI-X auto-sensing |
|
LED Indicators |
Power, Fiber, RJ45, and System Run indicators |
|
Transmission Distance |
|
|
Cat5e Cable |
100m |
|
Optical Module |
Single mode: 1310nm 20/40Km, 1550nm 60/80/100/120Km; Multimode: 1310nm 2Km |
|
Switching Performance |
|
|
Forwarding Rate |
1488095pps |
|
Transmission Mode |
Store and Forward |
|
MAC Address Table |
8K |
|
Buffer Memory |
4.1Mb |
|
Backplane Bandwidth |
12G |
|
Maximum Frame Size |
10KB |
|
Power Requirements |
|
|
Input Voltage |
12/24/48VDC (10.8~52.8VDC) |
|
Power Consumption |
250mA@24Vmax |
|
Mechanical Characteristics |
|
|
Enclosure |
IP40 Protection Grade |
|
Installation |
DIN-rail/Wall-mounting |
|
Weight |
≤1600g |
|
Dimensions |
150mm×100mm×30mm |
|
Package Dimensions |
|
|
Dimensions |
250mm×205mm×55mm |
|
Operating Environment |
|
|
Operating Temperature |
-40℃~75℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Humidity |
0~95% (Non-condensing) |
|
Industry Standards |
|
|
EMI |
FCC Part 15 Subpart B Class A, EN55022 Class A |
|
EMS |
IEC(EN)61000-4-2 (ESD), IEC(EN)61000-4-3 (RS), IEC(EN)61000-4-4 (EFT), IEC(EN)61000-4-5 (Surge), IEC(EN)61000-4-6 (CS), IEC(EN)61000-4-8, IEC60068-2-27 (Shock), IEC60068-2-32 (Freefall), IEC60068-2-6 (Vibration) |
