NDZ3AT-60010H Series DC Contactor, Nader
Rated current In (A): 600A
Rated working voltage Ue: DC12~1500V
Coil control voltage Uc (V): DC12V/24V
Certifications: CCC, CB, CE, TUV, UL
Technical parameters:
| Main Circuit Polarity | None | |
| Main Contact Form | 1NO | |
| Operational Voltage Range | DC12~1500V | |
| Rated current (A) | 600A | |
| Contact Resistance | ≤0.2mΩ(at 600A) | |
| Short-circuit withstand current | 8000A 10ms、3000A 4s、1000A 5min、800A 20min、600A continuous | |
| Control Coil(20°C) | Rated voltage Ui (V) | DC12V, DC24V |
| Coil Polarity | Polarized | |
| Coil Power Consumption | Pick-up: 55W; Hold: 5.5W | |
| Maximum breaking current | DC1000V 2000A | Once |
| DC1500V 1000A | Once | |
| Insulation resistance | 1000mΩ, DC1500V | |
| Dielectric Strength | AC4000V 60s (leakage current ≤1mA) | |
| Installation position torque | M5 screw(3~4N.m) | |
| Wiring terminal torque | M8 screw(9~10N.m) | |
| Certificates | CCC、CB、CE、TUV、UL | |
| Mechanical life | 200000 times, frequency 3600 times/h | |
| Electrical life | DC1500V 600A 5times DC1000V 600A 200times DC750V 600A 500times | |
| Shock Stability | 10g | |
| Shock Resistance | 50g | |
| Vibration Resistance | 10~55Hz | |
| Weight | Approx. 1130g | |
| Normal Working Environment | ·Operating environment：-40~85℃ ·Operating humidity：5%~95% ·Pollution level：3 | |
| Installation Mode | Screw mounting | |
| Environmental Compliance | Comply with the RoHS directives | |

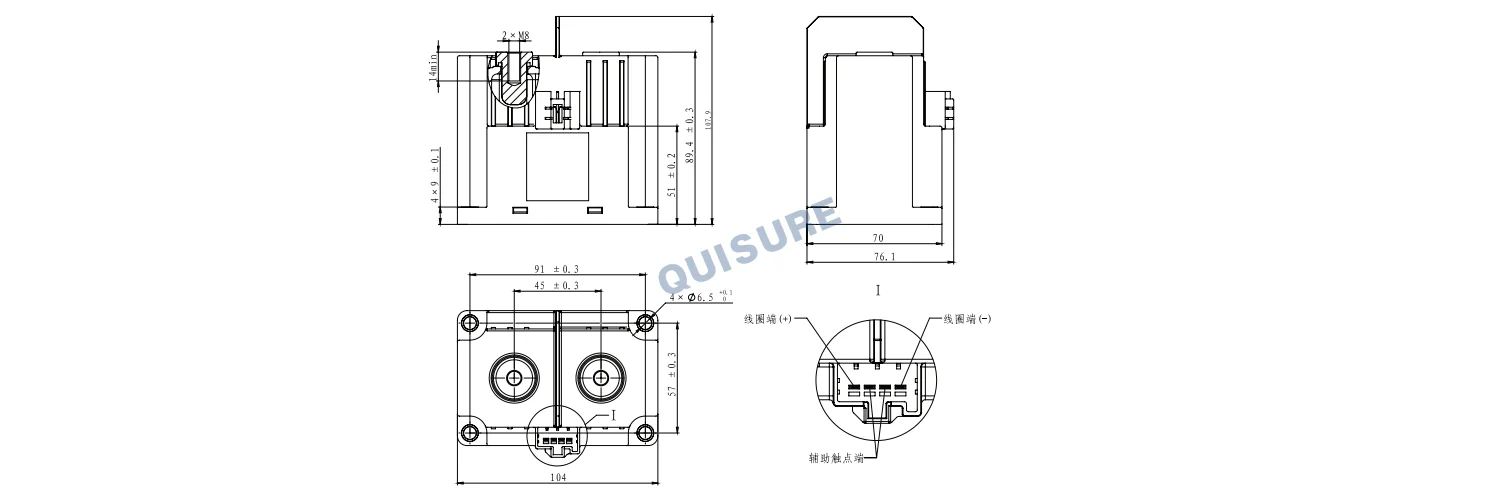

Outline and installation dimension
