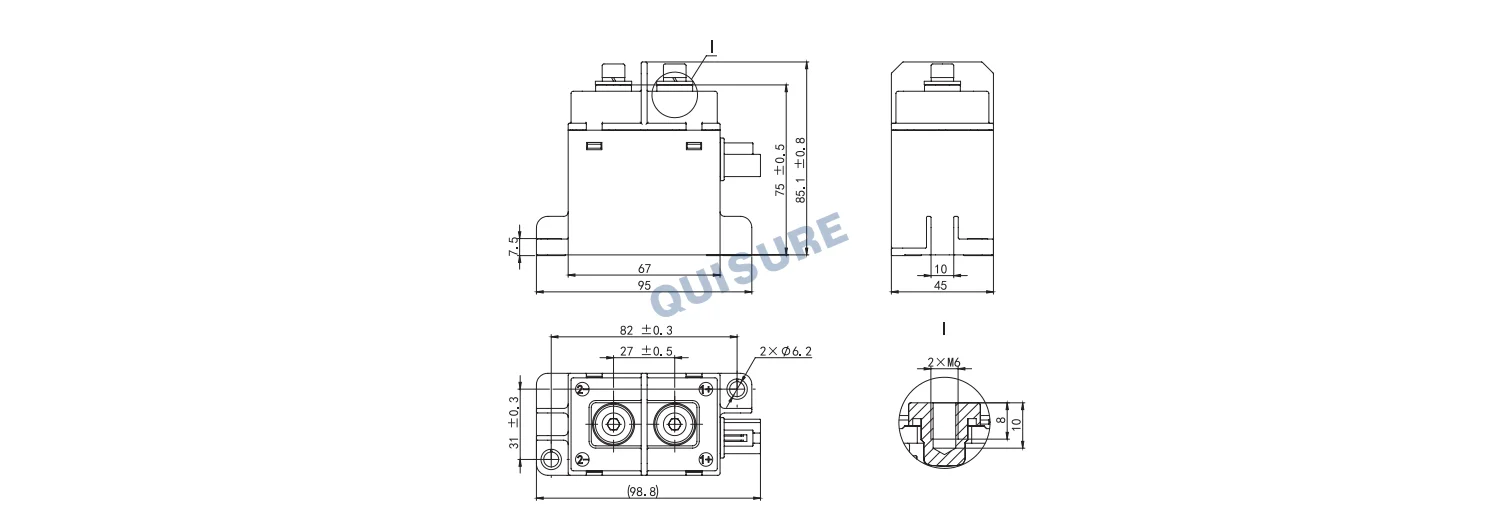

NDZ3AT-200 Series DC Contactor, Nader

Rated current (A)

200A

Rated voltage Ue (V)

DC750V

Main Circuit Polarity

Polarized

Insulation voltage Ui (V)

DC1000V

Control Coil

Rated voltage Ui (V)

DC12V, DC24V

Operating Voltage

75%~110% Uc

Drop-out Voltage

10%~60% Uc

Coil Polarity

None

Turn-on Time (20°C, Rated Voltage)

≤50ms

Turn-off Time (20°C)

≤30ms

Coil Power Consumption (20°C)

6W

Installation position torque

M5 screw(3~4N.m)

Wiring terminal torque

M6 screw(6~8N.m)

Certificates

/

Mechanical life

200000 times, frequency 3600 times/h

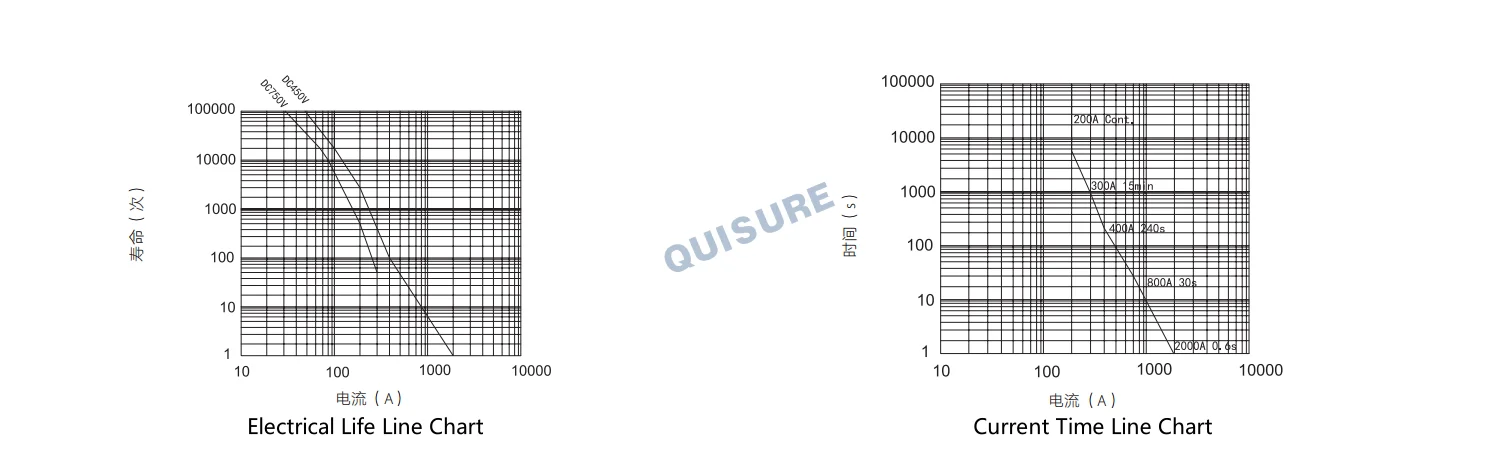

Electrical life (Make 0.6s/Break 5.4s, Resistive Load)

DC450V 200A

3000 times

DC750V 200A

500 times

DC450V 200A

100 times

Maximum breaking current

DC450V 2000A

Once

Short-circuit withstand current

2000A 600ms

800A 30s

400A 240s

300A 15min

Contact Resistance (at Rated Current)

≤0.2mΩ

Insulation resistance

1000mΩ, DC1000V

Dielectric Strength

·Between open contacts: AC3000V for 1min (leakage current ≤1mA) ·Between contacts and coil: AC3000V for 1min (leakage current ≤1mA)

Shock Resistance

·Stability: 20g (ON state), 10g (OFF state) (half-sine pulse: 11ms, detection time 10μs)

·Destruction: 50g

(half-sine pulse: 6ms)

Vibration Resistance

10~500Hz 5g

Product Weight

Approx. 605g

Normal Working Environment

·Operating environment：-40~85℃

·Operating humidity：5%~95%

·Pollution level：3

Installation Mode

Screw mounting

Environmental Compliance

Comply with the RoHS directives
