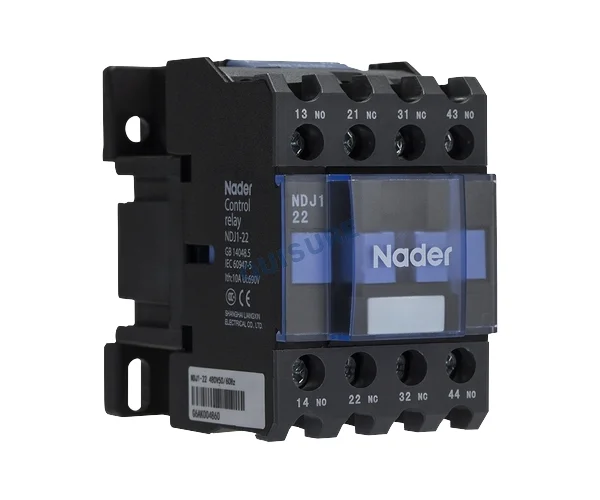

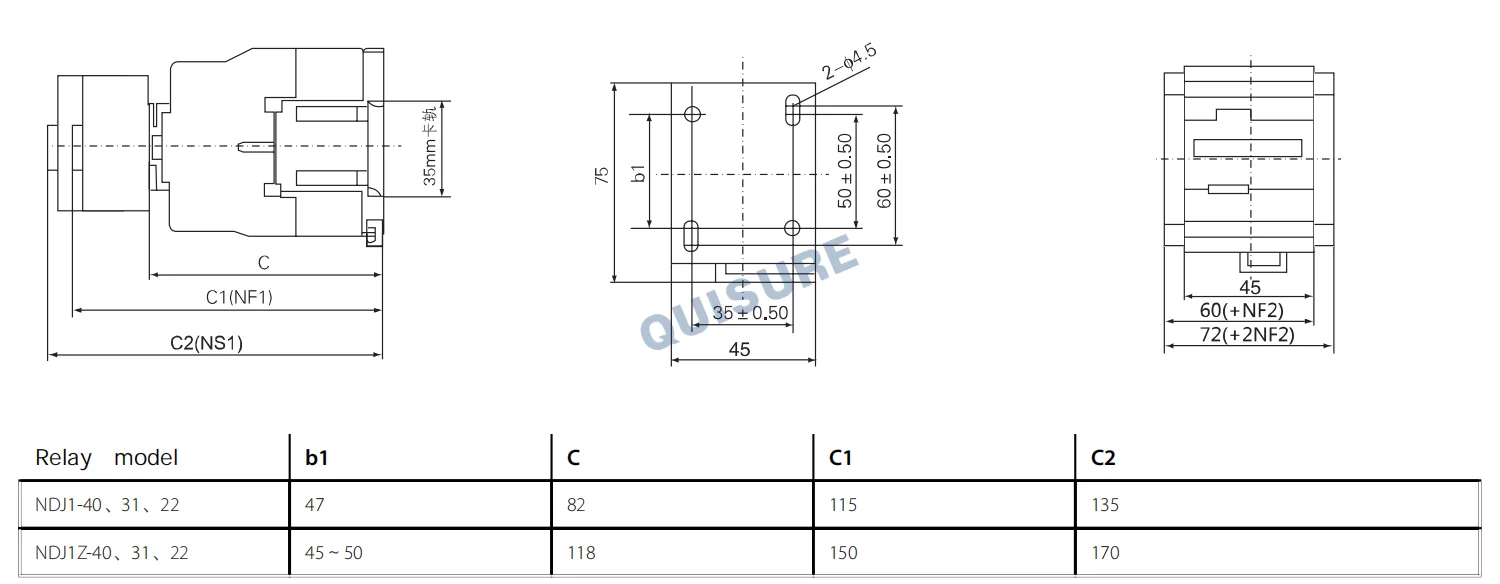

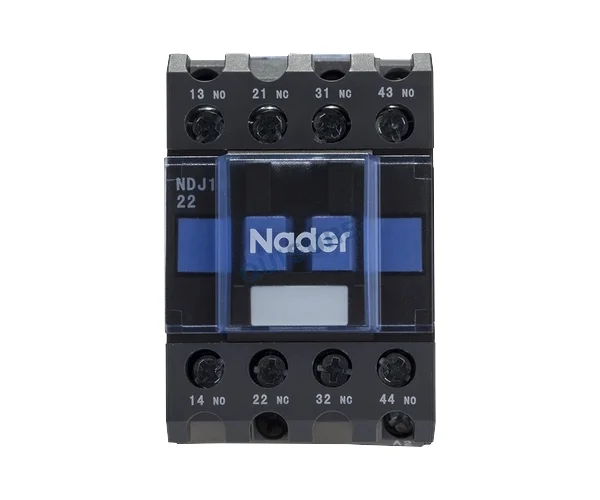

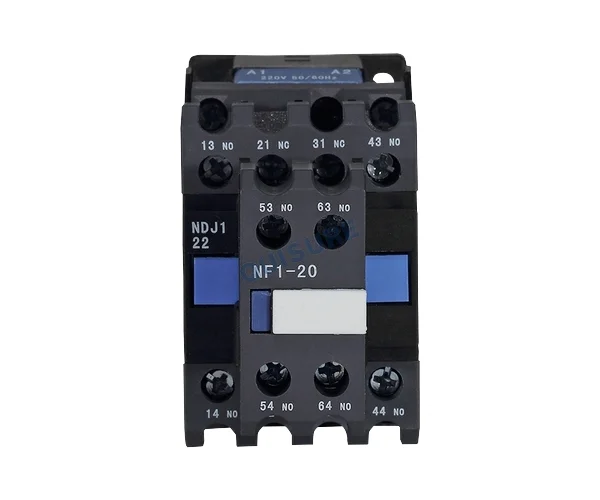

NDJ1-40 Series AC Contactor, Nader

Rated working current (A) Ie

AC-15(380V)

0.95A

DC-13(220V)

0.15A

Agreed thermal current of the free air Ith/A

10A

Rated insulating voltage Ui (V)

690V

Rated working voltage Ue (V)

AC380V, DC220V

Power-frequency withstand voltage (V)

1890V 1min

Rated Frequency (Hz)

50/60Hz

Standards and Certificates

·CCC

·GB/T 14048.5, IEC60947-5-1

Min load connected

17V 5mA

Rated operating frequency h⁻¹

2400

Mechanical life

1000×10⁴ times

Electrical life

120×10⁴ times

Coil

Rated control voltage Uc/V

AC(50Hz/60Hz): 24V,48V,110V,220V,380V

Pull-in voltage range

85%Uc ~ 110%Uc

Discharge voltage range

20%Uc ~ 75%Uc

Coil power 50/60Hz VA

Pick-up

65VA

Maintain

8VA

Terminal Capacity (mm²⁾

Flexible Wire

2.5mm² (1wire or 2wires)

Solid Wire

4mm² (1wire or 2wires)

Transfer Time between NO and NC Contacts

4ms

Operate Time

NO

Make

10~22ms

NC

Make

9~24ms

Permissible Instantaneous Overcurrent

1s

100A

500ms

120A

100ms

180A

Protection class

IP20

Installation Mode

Bolt installation

Working condition

·Operation temperature:-25℃～+40℃

·Storage Temperature: -60℃～+80℃

·Altitude: ≤3000m.

·The relative air humidity at the installation site should not exceed 95%. Condensing should be avoided in the working environment.

·Pollution Level: 3
