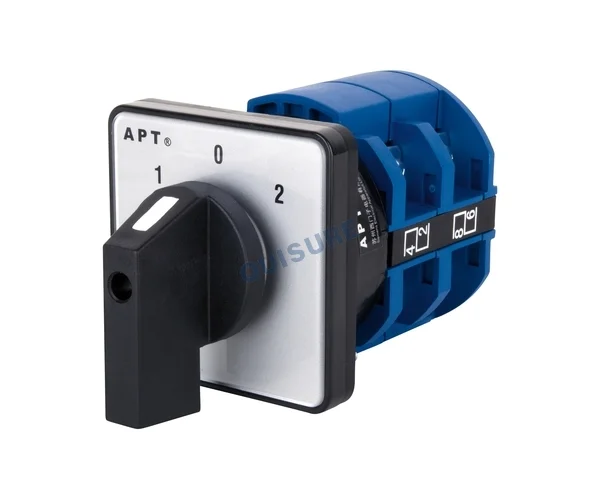

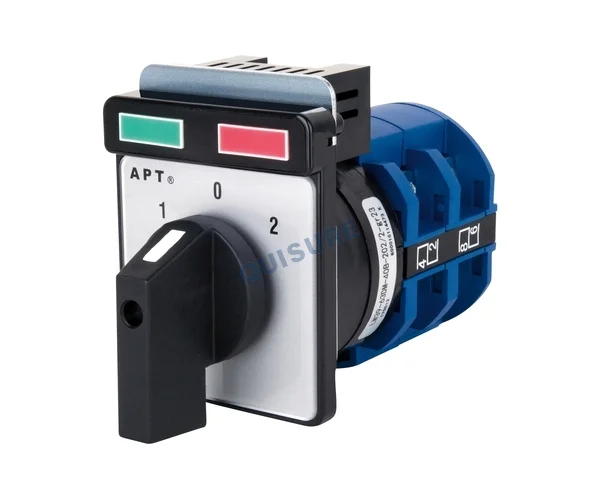

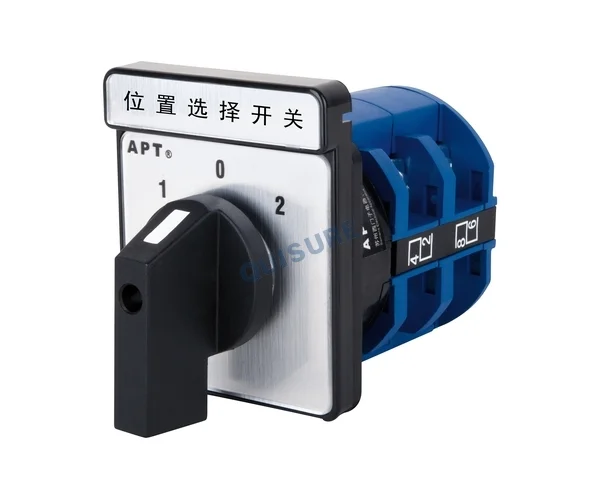

LW39-63 Series Cam Switch, APT

Rated insulation voltage Ui (V)

690V

Conventional thermal current Ith (A)

63A

Power frequency withstand voltage(1minute)

1890V

AC working current le

AC-21 OFF/ON resistive load

63A

AC-15 Control electromagnetic load

COSΦ=0.4

24V

28A

48V

25A

110V

22A

220V

16A

380V

8A

AC-3 Squirrel-cage asynchronous motor Startup, OFF during operation 3-phase 3-pole

380V

15KW

AC-4 Squirrel-cage asynchronous motor Startup, braking, reverse, inching 3-phase 3-pole

6KW

AC endurance

100,000 times

DC endurance

/

Mechanical endurance (positioning type)

300,000 times

Standards and Certificates

·CCC, CE, ROHS

·GB/T 14048.5, EN60947-5-1

Working conditions

·Altitudes2000m

·Ambient temperature: -25°C ~+55 °C

·Relative air humidity:≤90%

·Installation category: III

·Pollution class: 3
