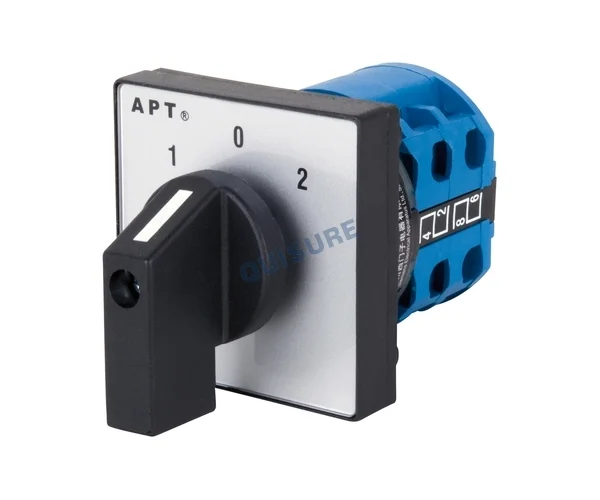

LW39-16B Series Cam Switch, APT

Rated insulation voltage Ui(V)

690V

Conventional thermal current Ith(A)

16A

Power frequency withstand voltage(1minute)

1890V

AC working current le

AC-21 OFF/ON resistive load

16A

AC-15 Control electromagnetic load

COSΦ=0.4

24V

16A

48V

8A

110V

5A

220V

3A

380V

1.8A

DC working current le (A)

DC-21 OFF/ON resistive load

Number of contacts in series

1

2

3

4

Voltage (V)

24V

48V

70V

95V

16A

48V

60V

95V

110V

12A

110V

220V

300V

1A

220V

440V

0.4A

440V

0.27A

DC working current le (A)

DC-13 Control electromagnetic load T=300ms

Number of contacts in series

1

2

3

4

Voltage (V)

24V

48V

70V

95V

12A

48V

60V

95V

110V

2A

110V

220V

300V

0.4A

220V

440V

0.2A

440V

0.1A

AC-3 Squirrel-cage asynchronous motor Startup, OFF during operation 3-phase 3-pole

380V

3KW

AC-4 Squirrel-cage asynchronous motor Startup, braking, reverse, inching 3-phase 3-pole

1.2KW

AC endurance

200,000 times

DC endurance

100,000 times

Mechanical endurance (positioning type)

300,000 times

Standards and Certificates

·CCC, CE, ROHS

·GB/T 14048.5, EN60947-5-1

Working conditions

·Altitudes2000m

·Ambient temperature: -25°C ~+55 °C

·Relative air humidity:≤90%

·Installation category: III

·Pollution class: 3
