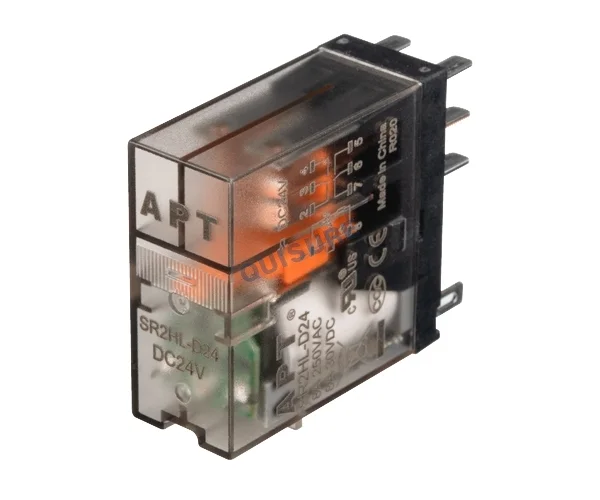

SR Series(12A), Intermediate Relays, APT
Rated insulation voltage: 250V
Rated impulse withstand voltage: 6000V
Rated thermal current: SR1M/SR1MLT: 12A
Degree of protection: IP40
Technical Parameters:
|
Product specification |
SR1M/SR1MLT |
|
|
Contact pole number and type |
1C/O changeover contact |
|
|
Contact material |
Silver alloy |
|
|
Conventional thermal current |
12A |
|
|
Compliance |
IEC61810-1, GB/T21711.1 |
|
|
Product certification |
UL/CQC/CE |
|
|
Ambient temperature |
Storage |
-40°C~+85°C No freezing or condensation |
|
Working |
-40°C~+70°C No freezing or condensation |
|
|
Ambient humidity |
Storage |
5~85%RH(no condensation) |
|
Working |
5~85%RH(no condensation) |
|
|
Protection class |
IP40 |
|
|
Rated insulation voltage(V) |
250V |
|
|
Insulation resistance |
1000mΩ |
|
|
Rated impulse withstand voltage(V) |
6000V |
|
|
Vibration resistance |
10-55Hz Dual amplitude 1.5mm |
|
|
Impact resistance |
Working status 200m/s2 and non-working status 100m/s2, 11ms |
|
|
Pull-in time |
≤20ms |
|
|
Release time |
≤15ms |
|
|
Power frequency withstand voltage |
Between contact and coil |
AC 5000V 50Hz·1min |
|
Between homopolar contacts |
AC 1000V 50Hz·1min |
|
|
Between heteropolar contacts |
/ |
|
|
Electrical endurance |
1.0×105 times(frequency: 1,800 times/hour) |
|
|
Mechanical endurance |
1.0×107 times(frequency: 18,000 times/hour) |
|
|
Weight |
About 20g |
|
|
Min. package quantity |
20pcs |
|
