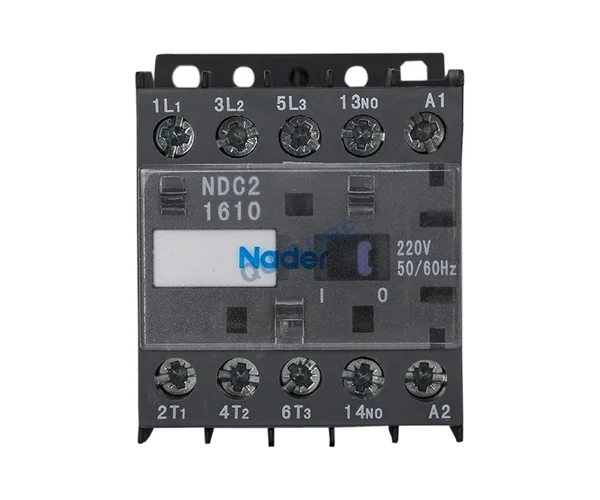

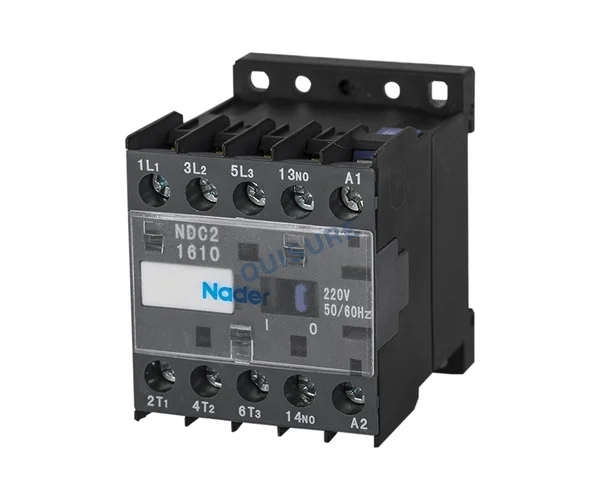

NDC2-12A Series AC Contactor, Nader
Rated current In (A): 12A
Rated working voltage Ue: AC220/230/240A, AC380/400/415A, AC660/690A
Coil control voltage Uc (V): AC24/36/48/110/220/380/415V
Poles: 3P, 4P
Certifications: CCC, CE, TUV, CB
Technical parameters:
|
Rated working current Ie (AC-3) A |
380/415V |
12A |
|||||
|
660/690V |
4.9A |
||||||
|
Rated working current Ie (AC-4) A |
380/415V |
4.3A |
|||||
|
660/690V |
1.9A |
||||||
|
Set heating current Ith (A) |
20A |
||||||
|
Rated working voltage Ue (V) |
AC220/230/240V, AC380/400/415V, AC660/690V |
||||||
|
Rated insulating voltage Ui (V) |
690V |
||||||
|
Rated Frequency (Hz) |
50/60Hz |
||||||
|
Standards and Certificates |
·CCC, CE, TUV ·GB/T 14048.4, GB/T 14048.5, IEC60947-4-1, IEC60947-5-1 |
||||||
|
AC-3 (6Ie,Ie) |
Electrical life |
100×104times |
|||||
|
Operating frequency h−1 |
1200 |
||||||
|
AC-4 (6Ie,6Ie) |
Electrical life |
20×104times |
|||||
|
Operating frequency h−1 |
600 |
||||||
|
Auxiliary Contact |
Agreed thermal current of the free air Ith/A |
10A |
|||||
|
Electrical life |
AC-15(360VA) |
100×104times |
|||||
|
DC-13(33W) |
|||||||
|
Minimum Makeable Load |
24V 10mA |
||||||
|
Coil |
Rated control voltage Us/V |
AC(50HZ、50/60HZ)：24V,36V,48V,110V,220V,380V,415V |
|||||
|
Pull-in voltage range |
85%Us～110%Us |
||||||
|
Discharge voltage range |
20%Us～75%Us |
||||||
|
Coil power 50Hz(VA) |
Pick-up |
50Hz |
30VA |
||||
|
50/60Hz |
30VA |
||||||
|
Maintain |
50Hz |
5VA |
|||||
|
50/60Hz |
5VA |
||||||
|
Mechanical life |
1000×104 times |
||||||
|
Main circuit connection capacity (mm2) |
Stranded (bare end) |
1wire |
0.75~4 mm2 |
||||
|
2wires |
0.75~4 mm2 |
||||||
|
Stranded (ferruled) |
1wire |
0.34~2.5 mm2 |
|||||
|
2wires |
0.34~1×1.5+1×2.5 mm2 |
||||||
|
Solid (bare end) |
1wire |
1.5~4 mm2 |
|||||
|
2wires |
1.5~4 mm2 |
||||||
|
Control circuit connection capacity (mm2) |
Cord |
1wire |
0.34~2.5 mm2 |
||||
|
2wires |
0.34~1×1.5+1×2.5 mm2 |
||||||
|
Hard wire |
1wire |
1.5~4 mm2 |
|||||
|
2wires |
1.5~4 mm2 |
||||||
|
Protection class |
IP20 |
||||||
|
Installation Mode |
Screw installation or installation on 35mm standard guide rail |
||||||
|
Working condition |
·Operation temperature:-25℃～+40℃ ·Storage Temperature: -60℃～+80℃ ·Altitude: ≤3000m. ·The relative air humidity at the installation site should not exceed 95%. Condensing should be avoided in the working environment. ·Pollution Level: 3 |
||||||

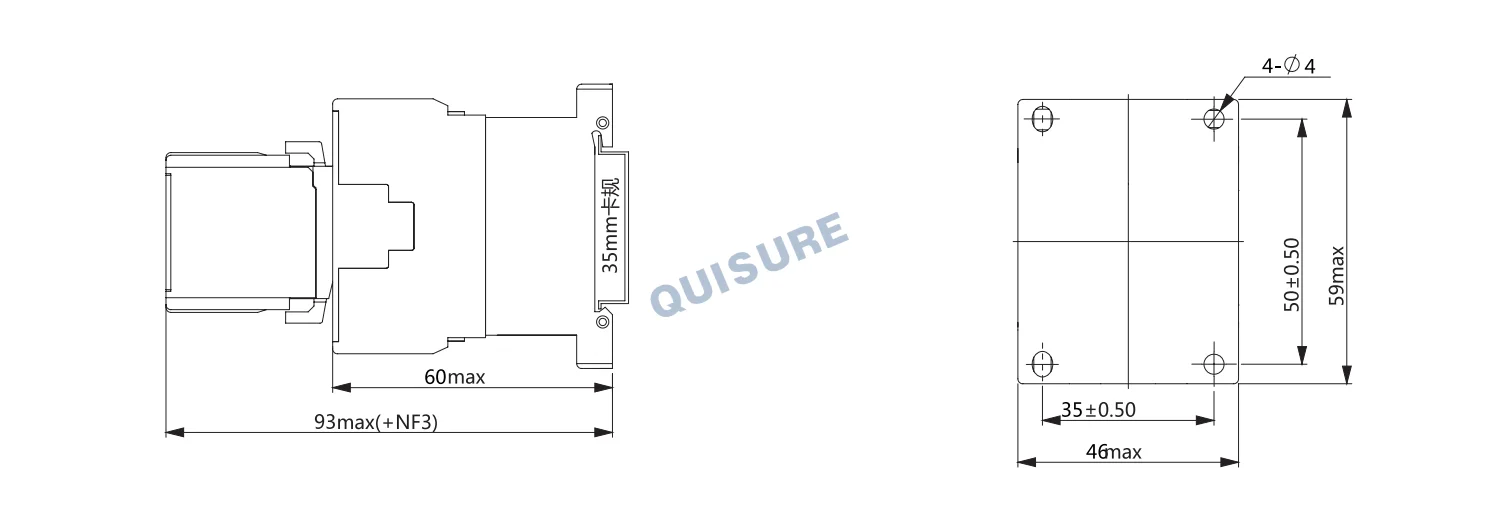

Outline and installation dimension
