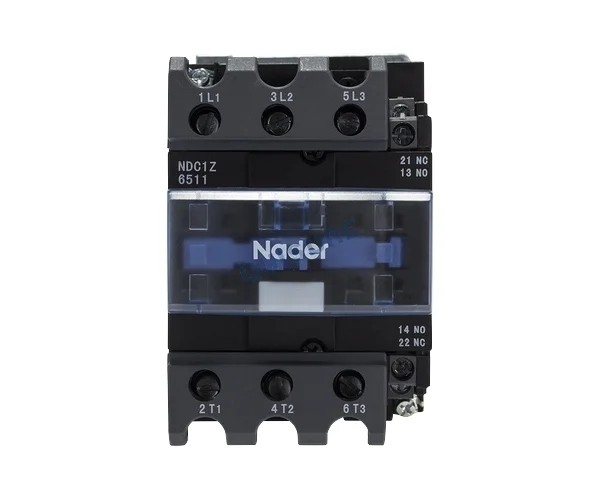

NDC1Z-32A Series AC Contactor, Nader - Image 1

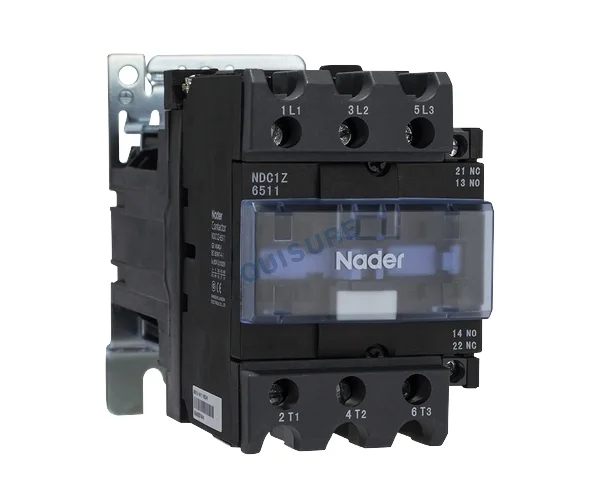

NDC1Z-32A Series AC Contactor, Nader - Image 2

NDC1Z-32A Series AC Contactor, Nader

Rated current In (A): 32A

Rated working voltage Ue: AC380/415/660/690V

Coil control voltage Uc (V): DC24/48/110/220V

Poles: 3P, 4P

Certifications: CCC, CE, TUV, CB

Product Description

Technical parameters:

Rated working current (A) Ie(AC-3)		415V	32A
		690V	21A
Rated working current (A) Ie(AC-4)		415V	12A
		690V	7.5A
Set heating current Ith (A)			50A
Rated insulating voltage Ui (V)			1000V
Rated working voltage Ue (V)			380/415V, 660/690V
Rated Frequency (Hz)			50/60Hz
Standards and Certificates			·CCC, TUV, CE ·GB/T 14048.4, GB/T 14048.5, IEC60947-4-1
AC-3 (6Ie、Ie)		Electrical life	80×10⁴times
		Max operating frequency h−1	600
AC-4 (6Ie、6Ie)		Electrical life	20×10⁴times
		Max operating frequency h−1	300
Coil	Rated controlling voltage Us (V)		DC:24V,48V,110V,220V
	Pick-up voltage (Note:40°C)		0.65Us～1.1Us(AC) 0.85Us～1.1Us(DC)
	Drop-out voltage		0.20Us～0.6Us(AC) 0.10Us～0.6Us(DC)
	Coil power 50/60Hz(VA)	Pick-up	110VA
		Maintain	11A
	DC coil power(W)	Pick-up	13W
		Maintain
Mechanical life			800×10⁴times
Auxiliary contact	Set heating current Ith (A)		10A
	Electrical life	AC-15(360VA)	80×10⁴times
		DC-13(33W)
	Min load connected		17V 5mA
Terminal capacity mm2 (min/max)	Non-prepared terminal soft cable	1 wire	2.5/10
		2 wires	2.5/10
	prepared terminal soft cable	1 wire	1/10
		2 wires	1.5/6
	Non-prepared terminal hard cable	1 wire	1.5/10
		2 wires	2.5/10
Protection class			IP20
Mounting			In addition to screw mounting, it can be installed on 35mm DIN rail.
Working condition			·Operation temperature:-25℃～+40℃ ·Storage Temperature: -60℃～+80℃ ·Altitude: ≤3000m. Less than 5000m for plateau type product. ·Environmental humidity requirements Under normal use, the limit humidity should not exceed 95% and last more than 24 hours, and Measures to prevent condensation should be taken, Environmental humidity is correlated with Temperature. When the ambient temperature is high, the relative humidity is tequired to be lower. If the temperature exceeds +40°C, the relative humidity is not more than 50%. ·Pollution Level: 3

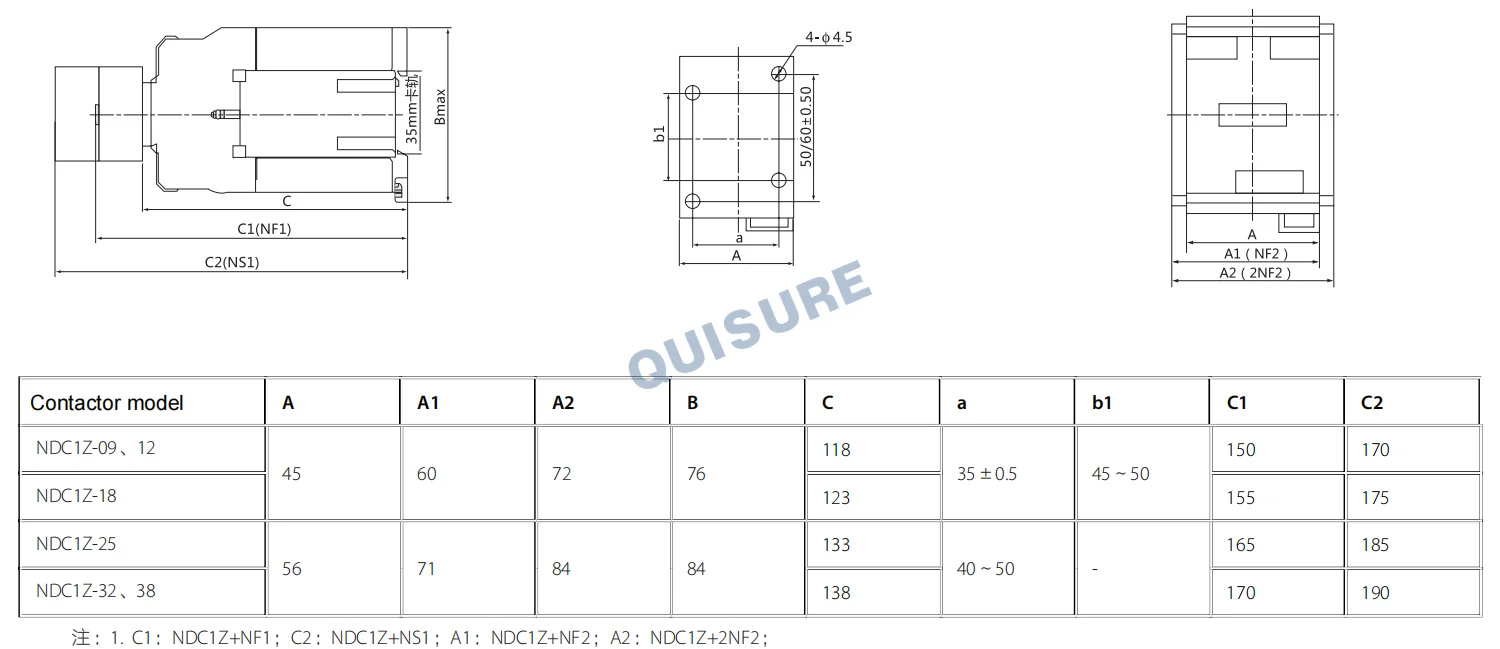

Outline and installation dimension

Packing and depositing:

Each product is packed separately and put into the carton box. The products should be stored at temperature no higher than +80℃, no lower than -60℃. No acidity, alkaline or other corrosive gas.
