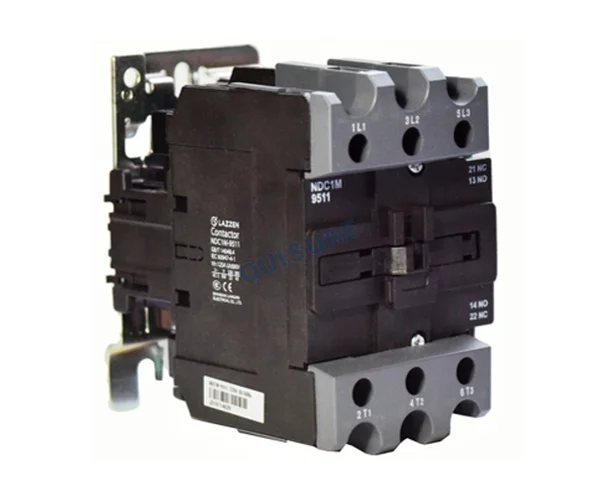

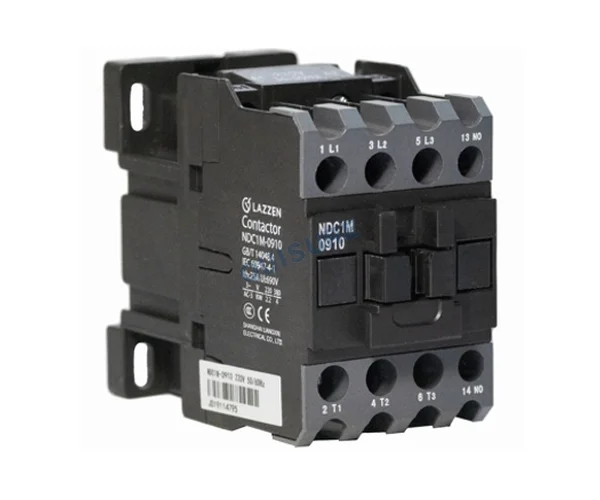

NDC1M-38 Series AC Contactor, Nader

Rated current In (A): 38A

Rated working voltage Ue: AC220/380/415V

Coil control voltage Uc (V): AC24/36/110/220/240/380/415V

Poles: 3P

Certifications: CCC, CE, TUV, CB

Product Description

Technical parameters:

Rated working current (A) Ie		AC-3	415V		38A
		AC-4	415V		13.9A
Set heating current Ith (A)					50A
Rated insulating voltage Ui (V)					690V
impulse withstand voltage Uimp(kV)					6kV
Rated working voltage Ue (V)					220/380/415V
Rated making capacity					AC-3: 10Ie/8Ie AC-4: 12Ie/10Ie
Rated Frequency (Hz)					50/60Hz
Standards and Certificates					·CCC ·GB/T 14048.4, GB/T 14048.5, IEC60947-4-1, IEC60947-5-1
AC-3 (6Ie、Ie)		Electrical life			80×104 times
		Max operating frequency h−1			600
AC-4 (6Ie、6Ie)		Electrical life			15×104 times
		Max operating frequency h−1			300
Mechanical life					800×104 times
Rated limited short-circuit current Iq(kA)					50kA
Coil	Rated controlling voltage Us (V)				AC(50/60Hz): 24V,36V,48V,110V,220V,380V,415V
	Pick-up voltage (Note:40°C)			AC	65%Us～120%Us(≤40°C) 80%Us～110%Us(≤60°C) 100%Us(60°C～70°C)
	Drop-out voltage				0.2Us～0.6Us(AC)
	Coil power 50/60Hz(VA)	Pick-up			110VA
		Maintain			11A
Auxiliary contact	Set heating current Ith (A)				10A
	Electrical life	AC-15(360VA)			80×10⁴times
		DC-13(33W)
	Min load connected				17V 5mA
Terminal capacity mm2 (min/max)	Non-prepared terminal soft cable	1 wire			2.5/10
		2 wires			2.5/10
	prepared terminal soft cable	1 wire			1/10
		2 wires			1.5/6
	Non-prepared terminal hard cable	1 wire			1.5/10
		2 wires			2.5/10
Protection class					IP20
Working condition					·Operation temperature:-25℃～+40℃ ·Storage Temperature: -60℃～+80℃ ·Altitude: ≤3000m. Less than 5000m for plateau type product. ·Environmental humidity requirements Under normal use, the limit humidity should not exceed 95% and last more than 24 hours, and Measures to prevent condensation should be taken, Environmental humidity is correlated with Temperature. When the ambient temperature is high, the relative humidity is tequired to be lower. If the temperature exceeds +40°C, the relative humidity is not more than 50%. ·Pollution Level: 3

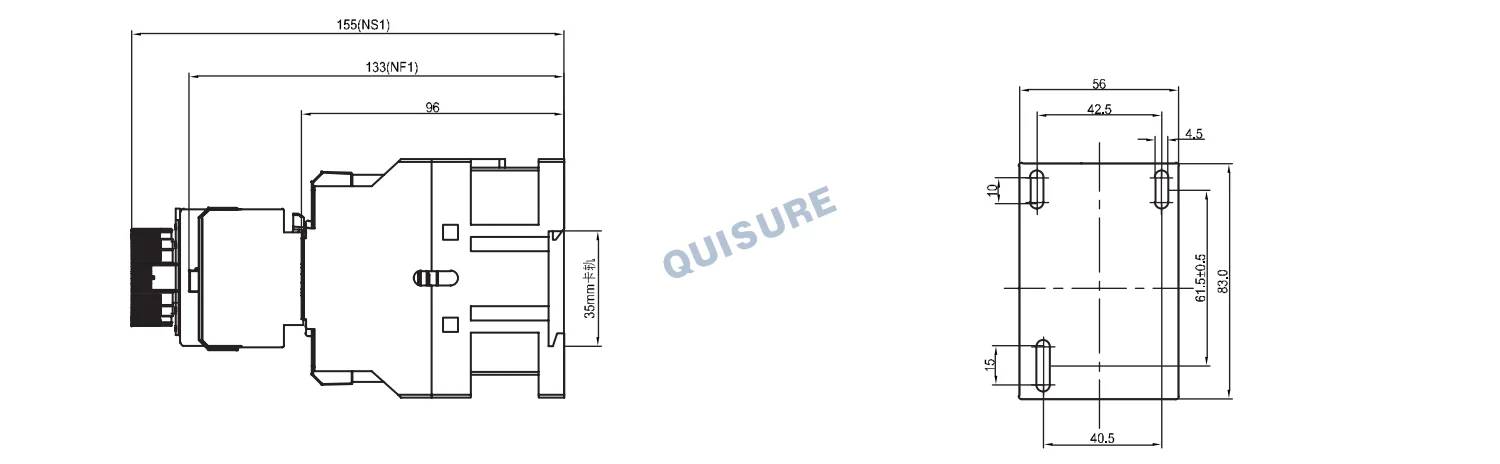

Outline and installation dimension

Packing and depositing:

Each product is packed separately and put into the carton box. The products should be stored at temperature no higher than +80℃, no lower than -60℃. No acidity, alkaline or other corrosive gas.
