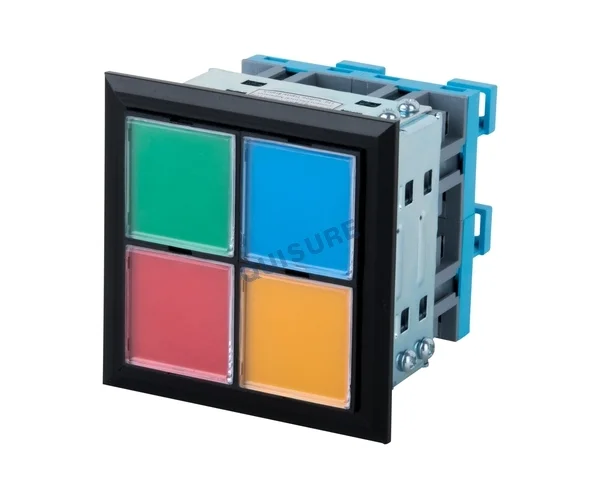

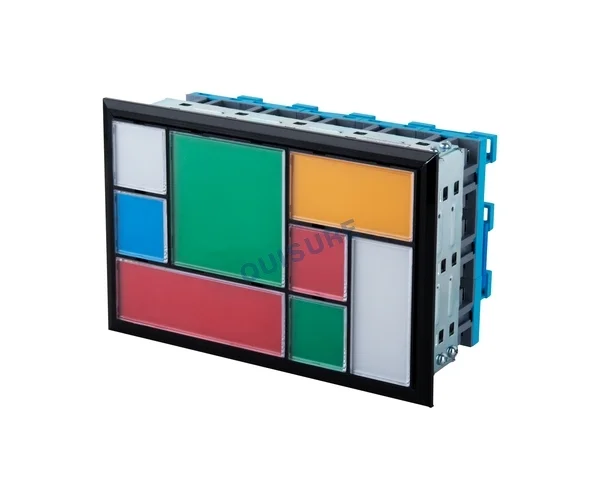

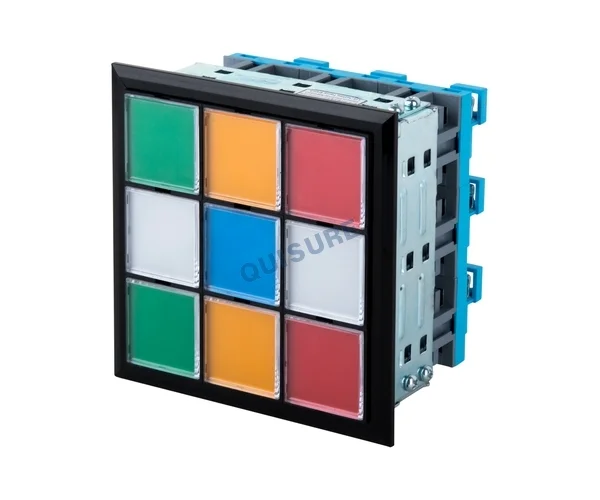

AD16-30JC Series Indicator, APT

Compliance

IEC 60947-5-1, GB/T 14048.5

Working voltage(V)

/

Power frequency withstand voltage

AC 1890V 50Hz·1min

Insulation resistance

≥100mΩ

Allowable voltage fluctuation of AC indicator

±20%

Continuous working endurance

≥30000 hours

Light brightness

≥100cd/m²

Relative discharge tracking index

CTI≥175

Use frequency

AC50~60Hz

Working temperature

-25℃~ +55℃

Average temperature in 24h not over +35℃

Working humidity

≤90% RH, the relative humidity is not over 50% when the temperature exceeds 40℃

Vibration frequency

Work normally under the vibration frequency of 2-80Hz and acceleration of 0.7g

Pollution grade

Grade 3, installation class III

Application environment

Those marked with “TH” can work normally in a humid and tropical environment
