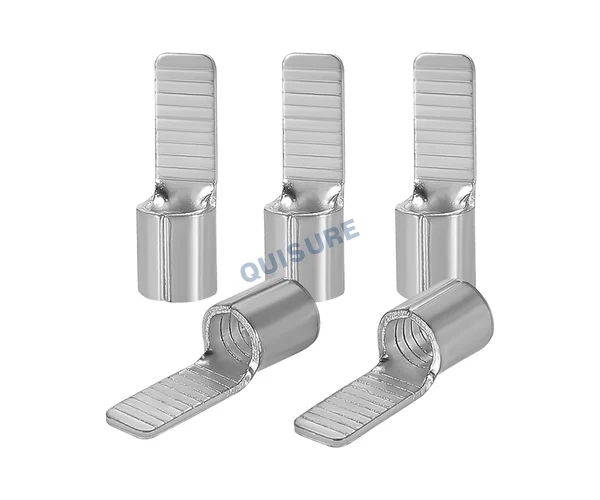

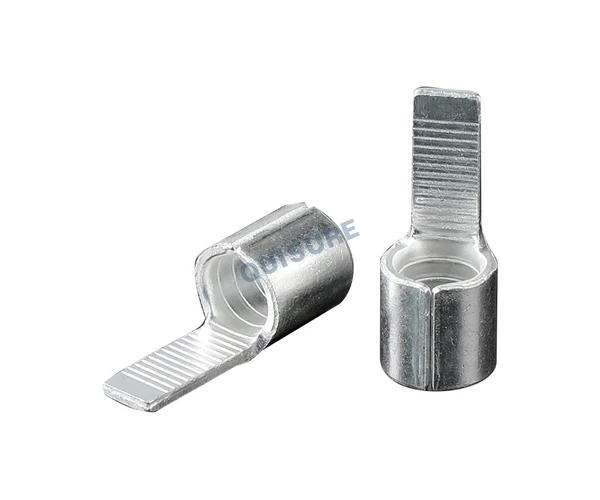

C45 Series Blade-Type Crimp Terminal, QuiSure
Material: Copper (tin-plated)
Structure: Blade-type for circuit breaker connection
Applicable wire size: 1.5 ~ 7mm²
Tube inner diameter: 2.1 ~ 14.1mm
Applicable wire size: 1.5 ~ 7mm²
Overall length: 12 ~ 22.1mm
Features
- Tin-plated surface, effectively preventing rust, corrosion and oxidation.
- Blade-type structure, ensuring stable insertion into circuit breaker terminals.
- High-quality copper material, excellent electrical conductivity and mechanical strength.
- Complete specifications to meet various wire cross-section requirements.
- Stable performance, safe and reliable connection, long service life.
Technical parameters
Model | Wire Size (mm²) | D (mm) Tube Outer Diameter | d (mm) Tube Inner Diameter | L (mm) Blade Length | B (mm) Blade Width | T (mm) Blade Thickness |
C45-1.5 | 1.5 | 3.5 | 2.1 | 12.0 | 4.8 | 0.6 |
C45-2.5 | 2.5 | 4.0 | 2.6 | 13.0 | 4.8 | 0.7 |
C45-4 | 4.0 | 4.8 | 3.4 | 13.0 | 4.8 | 0.7 |
C45-6 | 6.0 | 5.8 | 4.2 | 14.0 | 5.8 | 0.8 |
C45-10 | 10.0 | 7.4 | 5.4 | 14.0 | 5.9 | 1.0 |
C45-16 | 16.0 | 9.4 | 7.0 | 15.0 | 6.8 | 1.2 |
C45-25 | 25.0 | 10.1 | 7.3 | 15.6 | 6.8 | 1.4 |
C45-35 | 35.0 | 12.2 | 9.0 | 17.0 | 7.0 | 1.6 |
C45-50 | 50.0 | 15.2 | 11.5 | 17.0 | 7.1 | 1.6 |
C45-70 | 70.0 | 17.8 | 14.1 | 22.1 | 7.3 | 1.9 |
